Why Screw Jacks Are Preferred in Frying Machine Lifting

In the realm of food processing equipment, frying machines play a pivotal role in producing a wide array of crispy and delicious snacks and meals. Among the various lifting components available, screw jacks have emerged as the go-to choice for frying machines. This preference is rooted in a combination of factors that collectively enhance the performance, safety, and efficiency of these machines.

1. Exceptional Stability: Ensuring Smooth and Reliable Operation

One of the most critical aspects of a frying machine is the stability of its lifting mechanism. During operation, the lifting of the lid or frying basket in a frying machine can be subjected to lateral forces caused by oil splashes, external vibrations, or uneven loading. Dermail tranmission screw jacks, with their precision-guided bearings and trapezoidal screw designs, effectively distribute these lateral forces, preventing any deviation or tilting during the lifting process. This ensures a smooth and stable movement, which is essential for maintaining consistent frying conditions and preventing oil spillage.

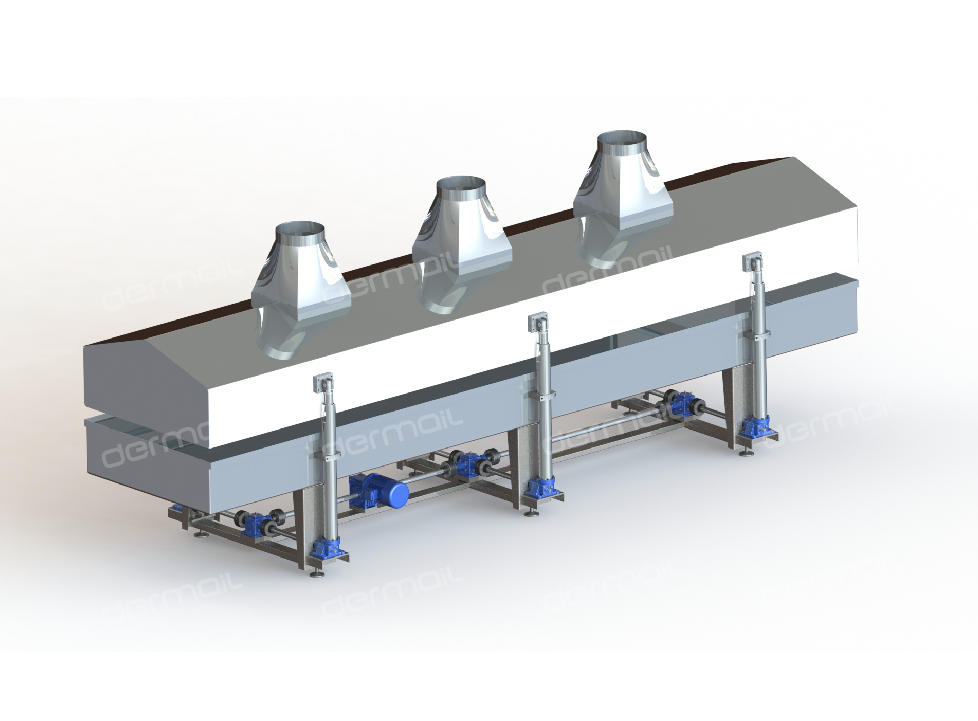

For instance, in large-scale continuous frying machines, multiple screw jacks work in tandem. Their synchronized control capabilities prevent issues such as jamming or oil leakage that could arise from uneven loading on one side. Moreover, the worm gear mechanism inherent in screw jacks provides natural anti-backdrive properties. Even under external disturbances, the screw will not rotate on its own, further enhancing the stability of the lifting system. This is particularly valuable during maintenance or cleaning operations when the lid needs to remain stationary at a specific height.

2. Unparalleled Safety: Multiple Protection Mechanisms in Place

Safety is of paramount importance in any food processing equipment, and frying machines are no exception. Screw jacks offer several built-in safety features that make them ideal for this application. Firstly, their self-locking ability, a result of the specific transmission ratio between the trapezoidal screw and worm gear, ensures that the lid or frying basket will not descend due to gravity in the event of a power failure or loss of motive force. This prevents potential injuries to operators and damage to the equipment.

In addition to self-locking, screw jacks can be equipped with a range of safety accessories. Limit switches can be installed to set upper and lower travel limits, preventing over-travel of the lifting mechanism. Anti-rotation devices can stop the screw from rotating under external forces, maintaining the position of the lifted component. Furthermore, handwheels can be provided to allow manual operation of the screw jack in case of an emergency or power outage, enabling the equipment to be safely stopped or adjusted. Load protection mechanisms are also available to prevent the screw jack from operating under excessive loads, thereby avoiding damage to the components.

3. Precise Control: Meeting the Fine-Tuned Requirements of Frying Processes

The frying process often demands a high degree of precision in terms of the position and movement of the frying basket. Screw jacks excel in this regard, offering micro-level position control. When combined with reducers or servo motors, they can achieve extremely accurate adjustments of the lifting height. For example, in vacuum frying machines, the speed at which the frying basket is immersed or lifted out of the oil must be precisely controlled to prevent excessive oil agitation, which could lead to product deformation. Screw jacks ensure that the basket moves at a constant speed, maintaining the quality and consistency of the fried products.

Moreover, screw jacks have excellent dynamic response capabilities. Their high transmission efficiency allows them to quickly adjust the lifting position in response to changes detected by sensors, such as variations in oil temperature or product status. Some advanced screw jack models are equipped with encoders that provide real-time feedback on the lifting position. This closed-loop control system further enhances the precision of the lifting operation, ensuring that each frying machine in a production line operates at the same level of accuracy, resulting in standardized products.

4. Superior Environmental Adaptability: Withstanding High Temperatures and Corrosion

Frying machines operate in harsh environments characterized by high temperatures and exposure to oil and cleaning agents. Screw jacks are well-suited to these conditions. Key components such as the screw, nut, and housing are often made of stainless steel, which offers excellent resistance to high temperatures and corrosion. This prevents rusting and performance degradation over time, even with prolonged contact with oil and cleaning solutions. For example, in the central kitchens of fast-food chains where frying machines operate 24/7, stainless steel screw jacks can significantly extend the service life of the equipment.

Some screw jack models feature a closed design that prevents oil mist or dust from entering the internal components, reducing wear and tear and minimizing the risk of malfunctions. Additionally, high-temperature lubricants can be used in screw jacks to ensure proper lubrication and reduce friction and noise even under elevated temperatures, further enhancing their reliability in frying machine applications.

5. Easy Installation and Maintenance: Simplifying Operations and Reducing Costs

The compact structure of screw jacks allows for flexible installation options. They can be mounted vertically, horizontally, or at an angle, making them adaptable to the space constraints of different types of frying machines. For instance, in small tabletop frying machines, screw jacks can be vertically installed beneath the lid to save space, while in large continuous frying machines, they can be horizontally mounted on the sides of the frying basket for synchronized lifting.

Screw jacks also feature a modular design, with standardized components that are easy to replace or upgrade. If additional safety features such as explosion-proof components are required, only certain seals or motors need to be replaced. To improve precision, encoders can be added or the control system can be upgraded. Regular maintenance of screw jacks is straightforward, typically involving only lubrication and cleaning checks. This reduces downtime and maintenance costs, contributing to the overall cost-effectiveness of the frying machine.

6. Cost-Effectiveness: Lowering the Total Cost of Ownership in the Long Run

Although the initial cost of screw jacks may be slightly higher than some other lifting components, their long-term cost-effectiveness is undeniable. The stainless steel construction and closed design give screw jacks a long service life, reducing the frequency of replacements. Their high transmission efficiency also means less energy consumption, lowering the operating costs of the frying machine. For example, in continuous frying machines, the efficient operation of screw jacks can reduce the power requirements of the motors, resulting in significant energy savings over time.

Furthermore, the low failure rate and quick maintenance capabilities of screw jacks minimize production losses caused by equipment downtime. In fast-food chains, where frying machines are critical to meeting customer demand, any interruption in operation can lead to order delays and customer dissatisfaction. The reliability of screw jacks helps to avoid such situations, ensuring smooth production and maintaining business reputation.

In conclusion, the combination of stability, safety, precise control, environmental adaptability, easy installation and maintenance, and cost-effectiveness makes screw jacks the ideal lifting components for frying machines. As the food processing industry continues to evolve, the demand for high-performance and reliable frying equipment will only increase, and screw jacks are well-positioned to meet these growing needs.
