Characteristics of the Worm Gear and Worm Structure in Screw Jacks

Screw jacks are widely used mechanical devices for lifting and lowering loads with precision and stability. Among their various components, the worm gear and worm structure plays a pivotal role, offering a unique set of characteristics that make it highly suitable for a wide range of applications.

1. Compact Design and Space Efficiency

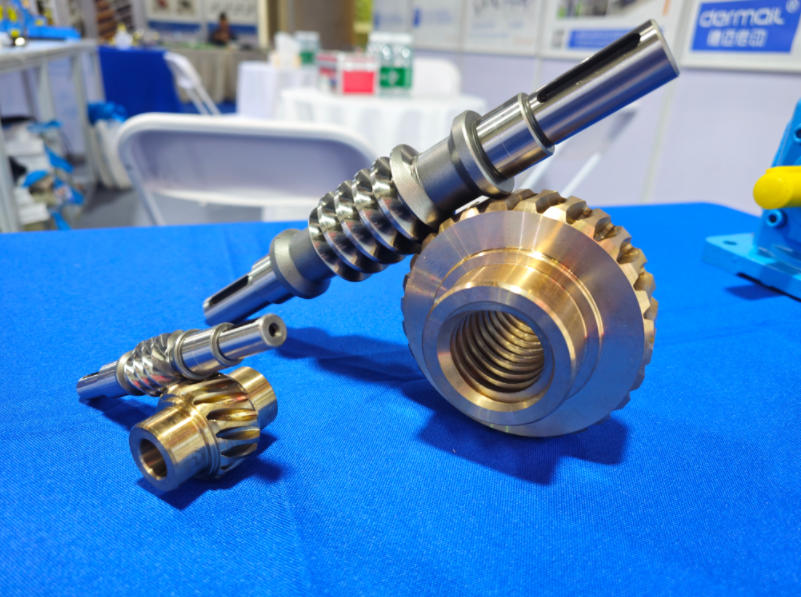

The worm gear and worm structure in screw jacks is renowned for its compact design. The worm, typically a cylindrical gear with a helical thread, meshes with the worm gear, which is a larger gear with teeth cut into its circumference. This arrangement allows for a significant reduction in the overall axial dimensions of the screw jack. In scenarios where installation space is limited, such as in automated production lines or within confined machinery compartments, the compact nature of this structure enables seamless integration without compromising on functionality. For example, in the adjustment mechanisms of precision optical instruments, the compact worm gear and worm structure can be easily accommodated, facilitating precise height or angle adjustments.

2. Smooth and Stable Transmission

One of the most prominent features of the worm gear and worm structure is its ability to provide smooth and stable transmission of motion. The helical shape of the worm thread ensures a gradual and continuous engagement with the worm gear teeth. This gradual engagement minimizes vibrations and shocks during operation, resulting in a highly stable lifting or lowering process. In applications where a high degree of stability is crucial, such as in the lifting platforms of medical equipment or in the stage machinery of theaters, the smooth transmission characteristic of the worm gear and worm structure ensures the safety and comfort of users and the precise execution of movements.

3. High Self-Locking Capability

Self-locking is a defining characteristic of the worm gear and worm structure in screw jacks. When the lead angle of the worm is smaller than the equivalent friction angle, the worm gear is unable to drive the worm in reverse. This means that even when a load is applied to the screw of the screw jack, such as the weight of a heavy object being lifted, the worm gear and worm structure will prevent the screw from rotating backward under the influence of gravity. This self-locking property eliminates the need for additional braking devices in many applications, simplifying the overall design and reducing costs. For instance, in warehouse storage systems where pallets are lifted to different heights, the self-locking feature of the screw jack ensures that the pallets remain securely in place, even in the event of a power failure.

4. Large Transmission Ratio

The worm gear and worm structure can achieve a relatively large transmission ratio. Since the number of teeth on the worm is usually small (often just one or a few), while the number of teeth on the worm gear can be quite large, a significant speed reduction and torque amplification can be realized. This large transmission ratio is extremely beneficial in applications that require high torque output to lift heavy loads. In the construction industry, for example, screw jacks with worm gear and worm structures are used to lift and position large structural components. The ability to generate high torque through the large transmission ratio allows these screw jacks to handle the immense weights involved in construction projects.

5. High Load-Bearing Capacity

The materials and design of the worm gear and worm structure contribute to its high load-bearing capacity. The worm is typically made of high-strength steel, which provides the necessary rigidity and strength to withstand the forces generated during operation. The worm gear, often made of a wear-resistant material such as bronze, can effectively distribute the load and resist wear and tear over time. This combination of materials ensures that the screw jack can safely and reliably lift and support heavy loads for extended periods. In the mining industry, where heavy machinery and equipment need to be lifted and moved, screw jacks with robust worm gear and worm structures are essential for ensuring the smooth operation of mining processes.

In conclusion, the worm gear and worm structure in dermail screw jacks offers a range of advantages, including compact design, smooth transmission, high self-locking capability, large transmission ratio, and high load-bearing capacity. These characteristics make it an ideal choice for a wide variety of industrial and commercial applications, where precise, stable, and reliable lifting and lowering of loads are required.
