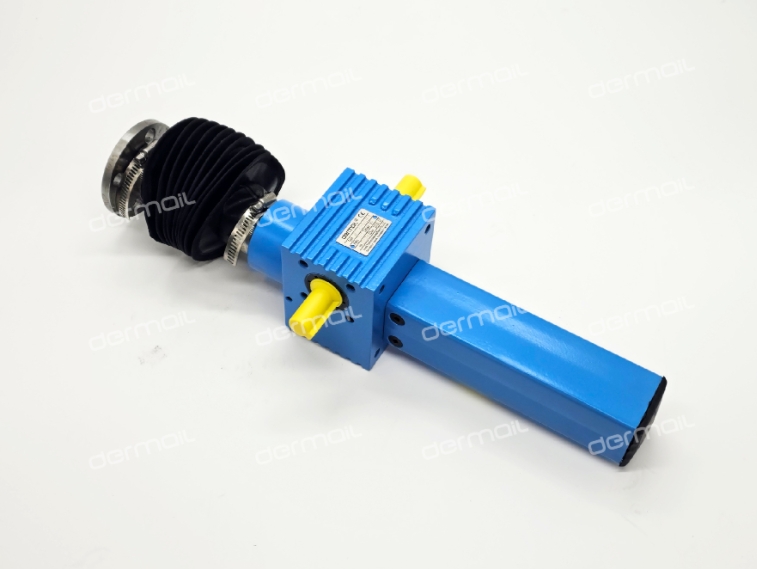

Why Ball Screw Jacks Achieve Such High Precision

Ball screw jacks are widely recognized for their exceptional precision in linear motion control, playing a crucial role in industries ranging from semiconductor manufacturing to aerospace engineering. The ability to achieve positioning accuracies down to the micrometer level and beyond stems from a combination of advanced mechanical design, precision manufacturing processes, and sophisticated error compensation mechanisms. This article explores the key factors that enable ball screw jacks to deliver such high precision.

1. Rolling Friction Mechanism: The Foundation of Precision

At the heart of a ball screw jacks lies its unique rolling friction system, which replaces traditional sliding friction with rolling elements (steel balls). This fundamental design offers several advantages:

1.1 Reduced Friction and Energy Loss

• Coefficient of Friction: Rolling friction (μ ≈ 0.001–0.003) is significantly lower than sliding friction (μ ≈ 0.1–0.2), minimizing energy dissipation and heat generation during operation.
• Consistent Motion: Lower friction reduces velocity fluctuations, ensuring smoother linear motion and eliminating stick-slip phenomena that plague sliding systems.

1.2 Precise Ball Circulation Systems

• Internal Circulation: Balls are guided through reverse channels (e.g., U-shaped grooves or end caps) within the nut, enabling single-loop circulation. This compact design is ideal for short-stroke, high-precision applications.
• External Circulation: Balls travel through external tubes or chains for multi-loop circulation, enhancing load capacity for long-stroke, heavy-duty tasks.
• Critical Tolerance Control: The radius of reverse channels must match ball diameters with an error margin of ≤0.005 mm to prevent jamming or uneven motion.

1.3 Preload Adjustment for Zero Backlash

• Dual-Nut Preloading: Two nuts are compressed axially via springs or shims to eliminate axial clearance (backlash). Proper preload ensures bidirectional precision but requires careful calibration:
  • Insufficient preload: Residual backlash causes positioning errors (typical ≤0.01 mm).
  • Excessive preload: Increases friction, leading to heat buildup and reduced lifespan.
• Single-Nut Offset Preloading: Achieves preload by eccentric machining of the nut’s raceway, offering a more compact design but demanding higher manufacturing precision (e.g., 5-axis CNC machining).

2. Precision Manufacturing: Micron-Level Tolerances

The high precision of dermail Transmission ball screw jacks is inseparable from advanced manufacturing techniques that control tolerances at the micrometer scale.

2.1 Screw Shaft Grinding

• Surface Finish: The screw’s raceway is ground to a surface roughness of Ra ≤ 0.2 μm, ensuring smooth ball contact.
• Roundness Error: Circularity deviations are kept below 0.002 mm to prevent uneven load distribution.
• Pitch Accuracy: Leading manufacturers (e.g., NSK’s 'Super-Finishing') limit pitch cumulative errors to ±0.005 mm over 300 mm, critical for long-stroke positioning.

2.2 Nut Raceway Hardening

• Induction Hardening: The nut’s raceway is hardened to HRC ≥ 58 with a case depth of ≥1.5 mm, resisting wear and maintaining precision over millions of cycles.
• Laser Interferometer Calibration: Before assembly, nuts are paired with screws using laser interferometers to adjust preload and eliminate clearance, with ball diameter tolerances as tight as ±0.001 mm.

2.3 Ball Selection and Matching

• Grade Precision: Balls are classified into grades (e.g., G5 grade with ±0.0005 mm diameter tolerance) to ensure uniformity within each nut.
• Material Consistency: High-carbon chromium bearing steel (GCr15) is vacuum-degassed to reduce internal defects, ensuring identical elastic modulus across all balls and minimizing deformation-induced errors.

3. Error Compensation Mechanisms: Correcting Imperfections

Even with precision manufacturing, residual errors must be actively corrected to achieve sub-micron accuracy.

3.1 Pitch Error Compensation

• Problem: Screw pitch variations (e.g., ±0.005 mm per revolution) cause periodic positioning errors.
• Solution: CNC controllers use laser-measured pitch data to adjust motor pulses in real time, compensating for deviations. For example, a 300 mm stroke can achieve ±0.005 mm accuracy after compensation.

3.2 Backlash Compensation

• Problem: Mechanical backlash in couplings or gearboxes introduces hysteresis.
• Solution:
  • Manual Input: Backlash values measured with dial indicators are manually entered into the controller.
  • Automatic Detection: Advanced systems (e.g., Siemens 840D) auto-calibrate backlash without operator intervention, improving repeatability to ±0.002 mm.

3.3 Thermal Deformation Control

• Material Selection: Screws use low-thermal-expansion steel (α ≈ 11.5×10⁻⁶/°C), while nuts use copper alloys (α ≈ 17×10⁻⁶/°C) to minimize differential expansion.
• Cooling Systems:
  • Natural Cooling: Optimized heat sinks reduce temperature rise.
  • Forced Cooling: Oil or water jackets maintain screw temperatures below 60°C for heavy-duty applications.
• Effect: Thermal-induced positioning errors drop from ±0.05 mm/m (uncooled) to ±0.01 mm/m (cooled).

4. High-Precision Supporting Components

4.1 High-Resolution Encoders

• Absolute Encoders: Directly output position without homing, with resolutions up to 1 μm (e.g., Heidenhain RCN series).
• Incremental Encoders: Achieve 0.1 μm resolution (e.g., Tamagawa TS56 series) but require zero-reference marks.
• Installation: Direct screw-end mounting eliminates backlash from motor-side encoders.

4.2 Rigid Servo Systems

• Control Algorithms:
  • PID Tuning: Proportional-integral-derivative control stabilizes motor torque.
  • Feedforward Control: Anticipates position changes to reduce dynamic errors.
• Response Time: Premium servos (e.g., Yaskawa Σ-7) achieve current-loop response ≤0.1 ms and velocity-loop response ≤1 ms, enabling rapid error correction.

4.3 Stiff Mechanical Structure

• Guide Systems: High-rigidity linear rails (e.g., THK SHS series) increase rolling element diameter by 20% and use 4滑块 (vs. 2) to distribute lateral forces.
• Connection Rigidity: Motor-to-gearbox coupling misalignment is kept ≤0.05 mm to prevent transmission eccentricity.

Conclusion

The exceptional precision of ball screw jacks arises from a synergistic integration of rolling friction design, micron-level manufacturing tolerances, active error compensation, and high-rigidity supporting systems. By minimizing friction, eliminating backlash, correcting residual errors, and leveraging advanced control technologies, these devices achieve positioning accuracies as fine as ±0.001 mm and repeatability down to ±0.0005 mm. This precision makes them indispensable in industries where even nanometer-scale deviations can compromise product quality or process reliability, solidifying their role as the backbone of modern precision engineering.
