Applications of Bevel Gear Screw Jacks: A Comprehensive Overview

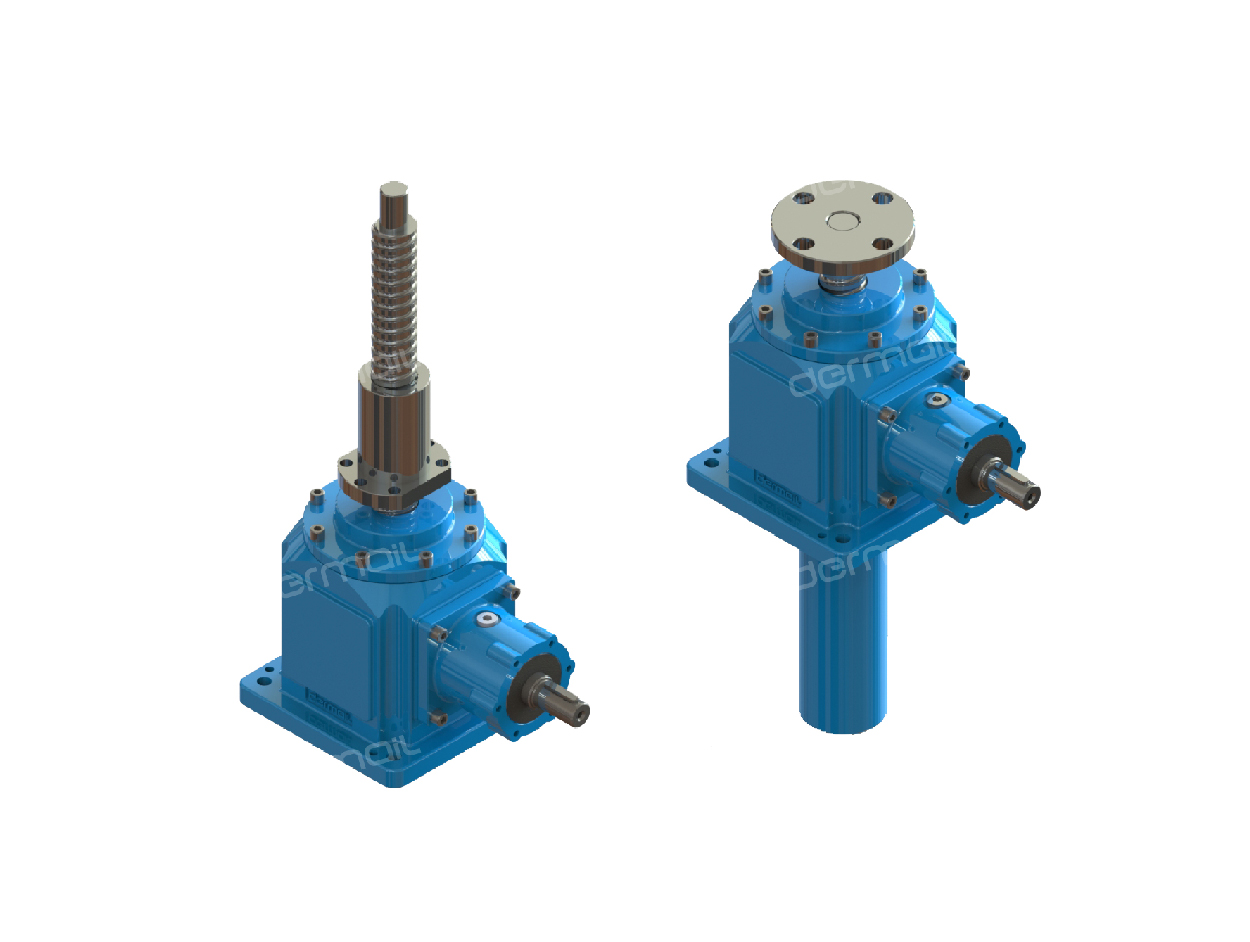

Bevel gear screw jacks, integrating the precision of screw mechanisms with the torque-amplifying capabilities of bevel gears, have emerged as indispensable components in industrial automation, heavy machinery, and specialized engineering fields. Their unique design—combining helical screw threads with compact bevel gear reduction—enables high-precision, high-load, and reliable linear motion control. This article explores the diverse applications of bevel gear screw jacks across industries, highlighting their technical advantages and real-world impact.

1. Precision Positioning in High-Tech Manufacturing

In sectors demanding micron-level accuracy, such as semiconductor fabrication, 3C electronics assembly, and optical equipment calibration, bevel gear screw jacks excel due to their minimal backlash and high repeatability.

• Semiconductor Industry: These jacks drive wafer-handling robots, ensuring vertical movements with ±0.01 mm precision. The anti-backlash design eliminates positional drift during rapid acceleration/deceleration, critical for protecting delicate silicon wafers.
• Medical Equipment: Surgical tables and imaging systems rely on bevel gear screw jacks for silent, vibration-free adjustments. For instance, a model with IP65 protection and 55 dB noise levels meets sterile operating room standards while maintaining ±0.05 mm positioning accuracy.


2. Heavy-Duty Lifting in Industrial Automation

Bevel gear screw jacks are engineered to handle loads ranging from several tons to over 100 tons, making them ideal for automotive production lines, metallurgical equipment, and logistics systems.

• Automotive Assembly: In body-in-white welding lines, these jacks lift and position 10-ton fixtures with sub-0.1 mm accuracy, ensuring precise alignment for robotic welding. Their self-locking feature prevents fixture sagging during power failures, enhancing safety.
• Steel Mills: For ladle tilting mechanisms in electric arc furnaces, bevel gear screw jacks withstand extreme temperatures (up to 800°C) and corrosive environments. Their robust design reduces maintenance frequency by 50% compared to hydraulic systems.


3. Multi-Axis Motion Control in Robotics

The compact structure of bevel gear screw jacks allows for multi-unit synchronization, enabling complex 3D motion in robotic arms, CNC machines, and packaging systems.

• Robotic Palletizers: Four jacks arranged in an X-Y-Z configuration lift and rotate 1.5-ton pallets with 0.05 mm repeatability, optimizing warehouse space utilization.
• CNC Machining Centers: In 5-axis milling machines, bevel gear screw jacks drive spindle head adjustments, achieving surface finishes below Ra 0.8 μm through high-resolution encoding feedback.


4. Harsh Environment Adaptability

Unlike hydraulic systems vulnerable to temperature extremes and contamination, bevel gear screw jacks thrive in challenging conditions:

• Renewable Energy: Solar tracking systems in deserts use stainless-steel jacks with wide-temperature lubricants (-40°C to +80°C), ensuring 25-year lifespans despite sand abrasion.
• Marine Engineering: Offshore platform cranes employ corrosion-resistant jacks (Ni-Cr plating) to lift 50-ton loads in saltwater environments, with sealed housings preventing seawater ingress.


5. Safety-Critical Applications

The inherent self-locking mechanism of screw jacks makes them indispensable in scenarios where load retention is non-negotiable:

• Aerospace: Satellite antenna adjustment mechanisms use bevel gear screw jacks to maintain positional stability during orbital maneuvers, with zero backdrive risk under vibration.
• Nuclear Power: In reactor pressure vessel maintenance, jacks support 200-ton components during disassembly, complying with stringent anti-slip standards (EN 13001-3-1).


6. Cost-Effective Retrofitting of Legacy Systems

Bevel gear screw jacks offer a plug-and-play upgrade path for aging hydraulic or pneumatic systems:

• Water Treatment Plants: Replacing hydraulic闸门 (sluice gate) actuators with electric screw jacks reduces energy consumption by 40% while eliminating oil leakage risks.
• Textile Machinery: Older looms retrofitted with jacks achieve 30% faster warp beam changes, with servo-driven jacks cutting setup time from 15 to 5 minutes.

Technical Advantages Driving Adoption

• Efficiency: 90%+ mechanical efficiency vs. 60-70% for worm gears, reducing operational costs.
• Longevity: 100,000+ cycle lifespans under full load, outlasting hydraulic cylinders by 3x.
• Compactness: 40% smaller footprint than equivalent hydraulic systems, enabling space-saving designs.


Conclusion

From microchip production to offshore energy infrastructure, dermail Translation bevel gear screw jacks continue to redefine linear motion control through their blend of precision, durability, and adaptability. As Industry 4.0 drives demand for smarter, greener machinery, these devices are poised to play an even greater role in enabling autonomous factories, zero-emission energy systems, and ultra-reliable critical infrastructure. Their evolution—incorporating IoT sensors for predictive maintenance and AI-driven load optimization—will further solidify their position as the backbone of modern industrial automation.
