What are the applications of screw jacks in elevating stages?

Elevating stages are critical components in modern theaters, concert halls, and event venues, enabling dynamic performances through seamless vertical movement. At the heart of these systems lies the screw jack (also known as a jack screw or worm gear lift), a mechanical device renowned for its precision, reliability, and ability to handle heavy loads. This article explores how screw jacks empower elevating stages to achieve smooth, controlled, and safe operation while accommodating diverse design requirements.

1. Core Mechanism of Screw Jacks

A screw jack operates on a simple yet robust principle: a rotating screw (lead screw) engages with a threaded nut, converting rotational motion into linear displacement. When integrated into an elevating stage, this mechanism allows for precise vertical adjustment. The use of a worm gear reduces speed and amplifies torque, ensuring stable movement even under substantial loads. This design eliminates the need for hydraulic or pneumatic systems, offering a cleaner, more maintenance-friendly alternative.

2. Precision Control in Performance Settings

In theater and entertainment, timing and accuracy are paramount. Screw jacks excel in delivering millimeter-level precision, enabling stages to align perfectly with lighting, scenery, or performer entrances. Unlike chain or belt-driven systems, which may suffer from slippage or elasticity, screw jacks maintain consistent positioning, even during prolonged pauses or sudden stops. This reliability is critical for complex choreography or technical effects requiring split-second synchronization.

3. Heavy-Duty Load Capacity

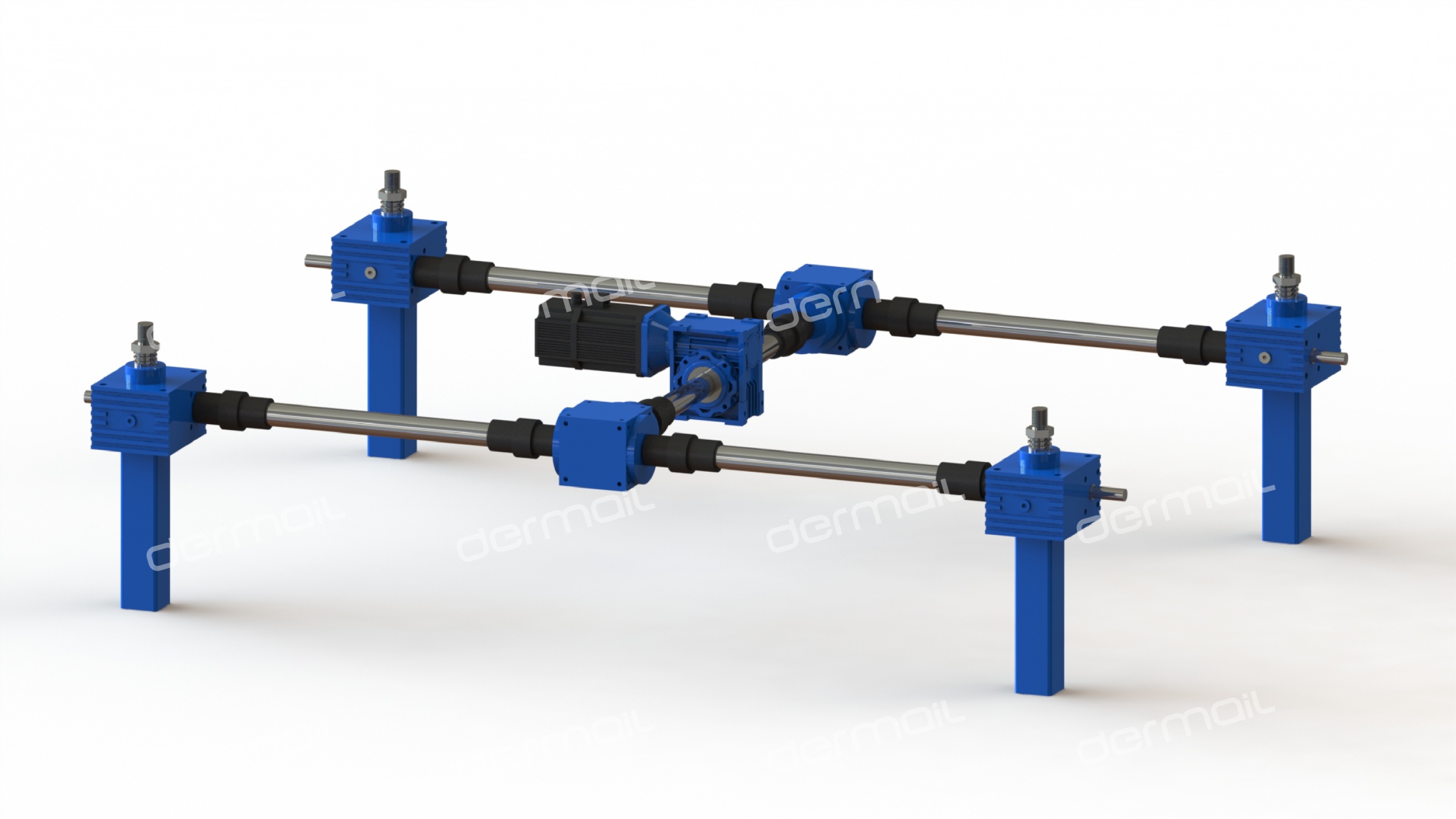

Elevating stages often support massive structures, including platforms, props, and lighting rigs. Screw jacks are engineered to handle loads ranging from a few hundred kilograms to several tons, depending on the model and configuration. Multi-jack systems can be synchronized via centralized control units, distributing weight evenly and preventing deformation. For example, a large-scale musical might use four screw jacks to lift a 10-ton stage, ensuring stability without compromising safety.

4. Safety and Redundancy

Safety is non-negotiable in live performances. Screw jacks incorporate self-locking mechanisms that prevent unintended movement when powered off, a feature absent in hydraulic or electric actuators. Additionally, they are less prone to leaks or pressure failures, reducing the risk of sudden drops. Modern systems often include load sensors, limit switches, and emergency braking, providing layered protection against accidents.

5. Compact Design and Space Efficiency

Theaters and event spaces frequently face spatial constraints. Screw jacks offer a compact footprint, with vertical or horizontal mounting options to suit architectural layouts. Their modular nature allows designers to integrate them into floors, walls, or ceilings without disrupting aesthetics. For instance, a retractable stage might use embedded screw jacks to rise seamlessly from the ground, blending functionality with visual appeal.

6. Low Maintenance and Longevity

Compared to hydraulic systems, which require regular fluid checks and seal replacements, screw jacks demand minimal upkeep. Their solid-state construction (often made of hardened steel) resists wear and corrosion, extending service life to decades with proper lubrication. This durability translates to cost savings and reduced downtime, essential for venues operating on tight schedules.

7. Versatility Across Stage Types

Screw jacks adapt to various stage configurations:

• Orchestra pits: Adjustable platforms for musicians.
• Thrust stages: Extending or retracting sections to alter audience proximity.
• Revolving stages: Combined with rotational drives for 360-degree movement.
• Special effects: Simulating earthquakes or tilting scenes through controlled vibration.

8. Integration with Smart Control Systems

Modern screw jacks can be paired with programmable logic controllers (PLCs) or IoT-enabled sensors, enabling remote monitoring and automated adjustments. Operators can preset multiple height positions, trigger movements via software, or sync stages with audio-visual effects. This digital integration enhances flexibility while maintaining the mechanical simplicity that makes screw jacks inherently reliable.

Conclusion

From Broadway productions to corporate events, screw jacks are the unsung heroes of elevating stages, combining engineering excellence with artistic adaptability. Their precision, safety, and low-maintenance design make them indispensable in environments where failure is not an option. As technology evolves, screw jacks continue to innovate, incorporating smarter controls and sustainable materials without sacrificing the core principles that have defined their success for centuries. Whether lifting a solo performer or an entire set, these devices ensure that every movement is as flawless as the performance itself.
