Applications of Screw Jacks in the Printing Machinery Industry

Screw jacks, also known as lead screw lifts or mechanical actuators, are widely utilized in the printing machinery industry for their precision, reliability, and ability to handle heavy loads. These devices convert rotational motion into linear movement, making them ideal for adjusting, positioning, and stabilizing critical components in printing equipment. Below are key applications and benefits of Ball Screw Jacks in this sector:

1. Precision Adjustment of Printing Units

In offset and digital printing presses, maintaining consistent pressure between printing plates, blankets, and substrates is crucial for image quality. Screw jacks enable micro-level adjustments of impression cylinders and plate cylinders, ensuring uniform ink transfer and minimizing ghosting or smudging. Their high-precision ball screw or trapezoidal screw designs allow for repeatable positioning with tolerances as low as ±0.01 mm, critical for high-resolution printing.

2. Stabilization of Heavy Components

Modern printing machines often feature large, heavy units such as unwinders, rewinders, and die-cutting stations. Screw jacks provide stable vertical or horizontal support for these components, preventing sagging or misalignment during high-speed operation. For example, in web offset presses, screw jacks adjust the tension of paper rolls dynamically, reducing web breaks and improving productivity.

3. Automated Height and Angle Adjustment

Flexibility is key in multi-functional printing systems. Screw jacks automate the adjustment of:

• Feeder tables to accommodate varying material thicknesses.
• Delivery units for optimal stack alignment.
• Ink fountain rollers to control ink film thickness.
  By integrating with servo motors or PLCs, screw jacks enable rapid, programmable changes between job setups, reducing downtime in high-mix production environments.

•

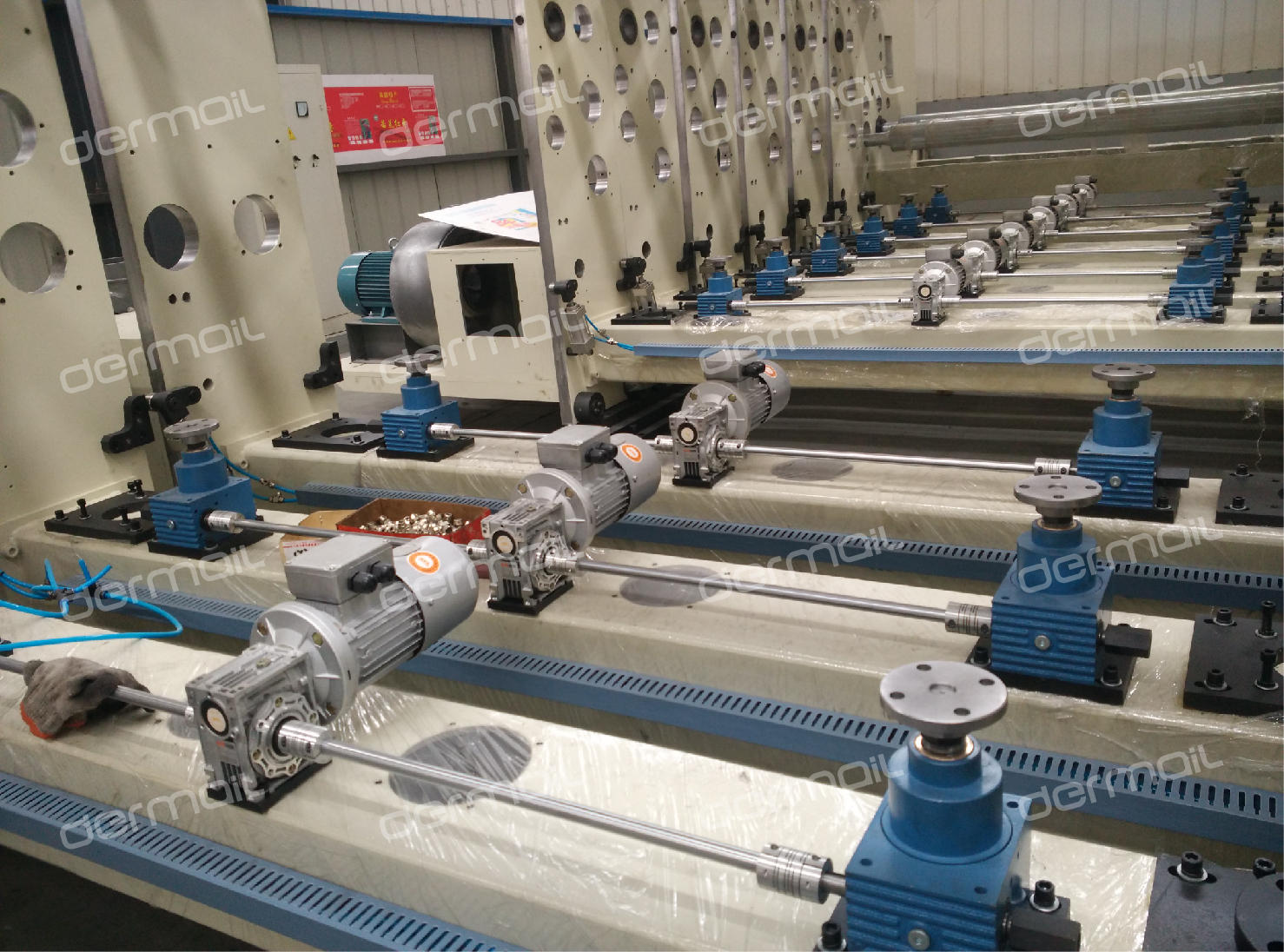

4. Synchronized Lifting for Large-Format Presses

In wide-format or industrial printers, multiple screw jacks work in tandem via centralized control systems to lift entire print beds or gantry structures. This synchronization ensures parallel movement, preventing skewing that could distort printed images. Anti-backlash nuts and precision gearboxes further enhance stability during operation.

5. Maintenance and Safety Support

Screw jacks simplify maintenance by allowing technicians to raise or lower machine sections for easy access to internal components. Some models incorporate overload protection clutches or limit switches to prevent damage from excessive force, enhancing operational safety.

Advantages Over Alternative Solutions

• Durability: Unlike hydraulic or pneumatic systems, screw jacks have fewer moving parts, reducing wear and leakage risks.
• Energy Efficiency: They consume power only during adjustment, not during static holding.
• Quiet Operation: Essential for noise-sensitive printing environments.
• Compact Design: Fits into tight spaces within machine frames.


Case Example: High-Speed Packaging Presses

A leading packaging printer integrated self-locking screw jacks into their corrugated box press to adjust anvil rollers. The system achieved:

• 50% faster job changeovers.
• 30% reduction in setup-related waste.
• 24/7 reliability with minimal maintenance.


Conclusion

Screw jacks play a vital role in enhancing the precision, efficiency, and adaptability of modern printing machinery. As the industry moves toward Industry 4.0, smart screw jacks with IoT connectivity will further enable predictive maintenance and real-time performance optimization, solidifying their position as indispensable components in advanced printing systems.
