Product Overview

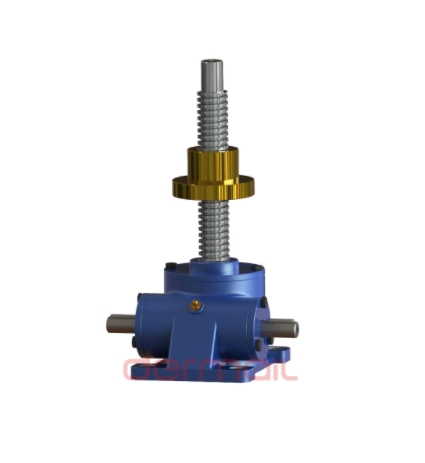

Nut-driven screw jacks, where the screw remains stationary while the nut translates along its axis, offer a versatile solution for precision linear motion control. This design excels in applications requiring high load capacity, compact installation, and reliable position holding. Commonly used in industrial automation, material handling, and precision equipment, nut-driven systems provide advantages such as reduced vibration, enhanced positioning accuracy, and modular configurability.
Technical Features & Benefits
1. High-Precision Thread Interface
- Thread Specifications: Available in M10/M12/M16/M20 and other metric sizes, with corresponding pitches (e.g., 6mm pitch for SWL2.5 models).
- Precision Grades: P-class (high-precision) for ball screws (±0.005mm repeatability) and standard grades for trapezoidal screws.
- Preload Mechanisms: Double-nut configurations with spring washers eliminate backlash, ensuring ±0.01mm positioning accuracy in CNC machines and semiconductor equipment.
2. Robust Material & Heat Treatment
- Screw Materials: 40Cr/42CrMo alloy steel with induction hardening (HRC55-60 surface hardness) for wear resistance; 304/316L stainless steel for corrosive environments.
- Nut Materials: Bronze (ZCuAl10Fe3) for self-lubricating heavy-duty applications; polymer (POM/PA66) for lightweight, low-noise operation (<80°C).
3. Integrated Guidance & Safety Systems
- Linear Guidance: HGH-series profiled rail systems with 1.8× screw diameter span minimize deflection under side loads (e.g., 2-ton lateral force in AS/RS shuttles).
- Self-Locking & Braking: Trapezoidal screws inherently prevent backdriving (friction angle > helix angle); electromagnetic brakes (200ms response time) ensure fail-safe holding in vertical installations.
- Monitoring: Safety nuts with wear-gap detection (0.02mm threshold) and torque limiters prevent overload failures.
4. Performance Parameters
5. Environmental Adaptability
- Protection: IP65-rated bellows seals and corrosion-resistant coatings (e.g., nickel plating) for dusty/wet environments.
- Temperature Range: -20°C to +80°C (standard); extended ranges available for extreme conditions.
Application Scenarios
- Automated Warehousing: Nut-driven ball screws in AS/RS shuttles achieve 100mm/s speeds with ±0.1mm accuracy for pallet positioning.
- Medical Devices: CT scanner beds utilize linear guides + nut-driven jacks for 0.05° bed leveling precision.
- Renewable Energy: Solar tracker drives employ self-locking screws for 5mm/s motion control in 2-ton payload systems.
Installation & Maintenance
- Alignment Tolerances: Coaxiality ≤φ0.05mm; perpendicularity ≤0.05°/1000mm.
- Lubrication Intervals: Grease replenishment every 500 operating hours; oil circulation for high-speed (>1000rpm) applications.
- Inspection: Quarterly checks for thread wear (replace if height loss >10%); annual brake functionality tests.
Conclusion
Nut-driven screw jacks deliver unmatched precision and reliability for industrial linear motion needs. With modular designs, advanced materials, and integrated safety features, these systems optimize performance across diverse applications—from heavy-duty material handling to ultra-precision positioning. For customized solutions, consult engineering teams to match specific load, speed, and environmental requirements.
Discover how nut-driven screw jacks can elevate your automation systems—contact us today for tailored configurations and technical support.
