Product description

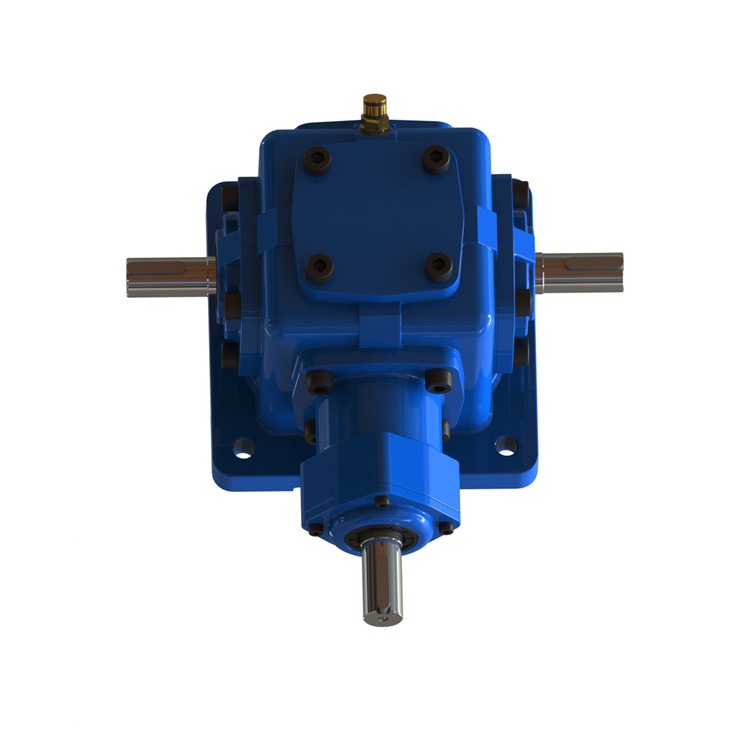

T Type Bevel Gearbox, also known as commutator and steering gear, is a kind of power transmission mechanism and a series of reducer, which is widely used in the industrial field. The steering box has been standardized and diversified. The steering box can run in both positive and negative directions, and the transmission is stable at low speed or high speed. When the speed ratio of the steering box is not 1:1, the input and output of the horizontal axis are deceleration, and the input and output of the vertical axis are acceleration. The steering box adopts the shape of high-quality aluminum alloy square box, high-purity alloy steel 20CrMnTiH carburizing and quenching gear, alloy steel quenching and tempering main shaft, tapered roller bearing and double sealing lip oil seal. The utility model has the advantages of beautiful appearance, strong adaptability, good heat dissipation performance, strong bearing capacity, long service life, etc. T series commutators are installed in various ways, with hollow output shaft structure, various input and output modes, convenient for combination with other machines, strong adaptability and convenient configuration. And the transmission is stable, high efficiency, low noise, safe and reliable.
Technical Parameters
T Type Bevel Gearbox power range: 0.014kW- 335 kW
T Type Bevel Gearbox torque range: 11.2Nm- 5713 Nm T Type Bevel Gearbox can be equipped with single horizontal axis, double horizontal axis, single vertical axis, double
vertical axis T Type Bevel Gearbox speed ratio: 1: 1, 1.5: 1, 2: 1, 2.5: 1, 3: 1, 4: 1, 5: 1
Application
T Type Bevel Gearbox is suitable for building materials, power, metallurgy, food, feed, textile, printing and dyeing, food, packaging, paper making, printing, chemical, Forestry, tobacco, construction, electrical machinery, industrial robots and other mechanical products and devices are used in mining machinery equipment, conveyor equipment, reducers, energy-saving equipment, Motorcycles, wood, textile machinery, printing machinery, transportation and transportation, paper and environmental protection industries, automatic production lines and other industries.
Advantage
1. The T Type Bevel Gearbox is available with single axis, double horizontal axis, single vertical axis, and double vertical axis.
2. The steering box is highly standardized and has many varieties. The speed ratios are all actual transmission ratios. The average efficiency is 98%.
3. When the speed ratio is not 1: 1, the horizontal axis input and vertical axis output are decelerating, and the vertical axis input and horizontal axis output are increasing speed.
4. The T Type Bevel Gearbox can run in the forward and reverse directions, and the low-speed or high-speed transmission is stable, and the noise is low, the vibration is small, and the bearing capacity is large.
