Product description

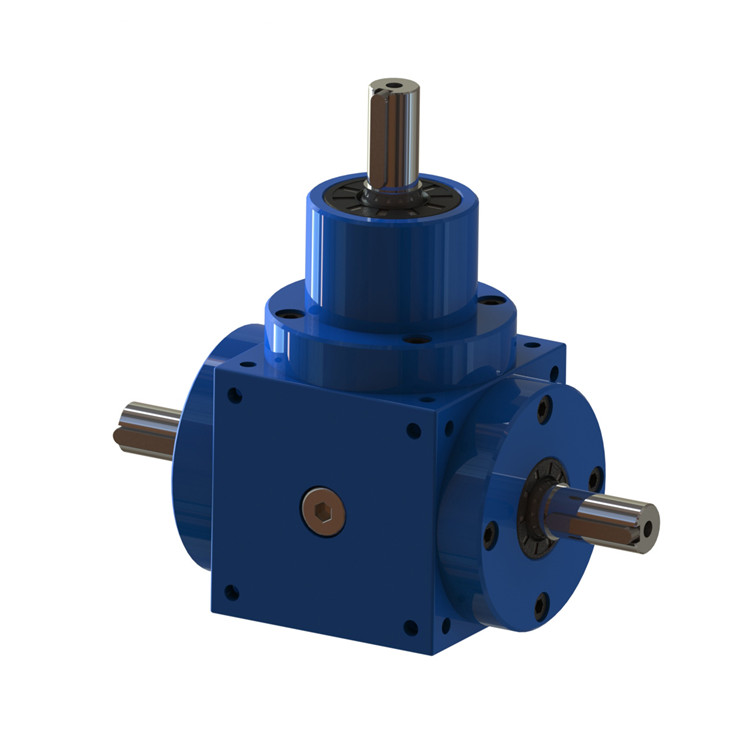

The box design of DMHD series steering box (bevel gear steering box) is very scientific, which is a regular hexahedron design. The installation dimensions of the two mounting surfaces of the box are unified, so that different installation methods can be used, which facilitates the use and installation of customers. This series of steering boxes uses high quality low-carbon alloy structural steel as the gear material, and undergoes carburizing, quenching, heat treatment, grinding and running in to achieve high-precision hard tooth surface closed transmission. The scientific box design and high-quality production materials enable the DMHX series steering box to have strong load-bearing capacity, low noise, stable transmission, and long service life during operation. The gear line can operate at a high speed of 40m/min, and the transmission efficiency can reach 94% -98%. The DMHX series steering box can achieve two transmission modes of speed increase and deceleration, with a variety of product types. Suitable for customers with a variety of choices, various output shaft forms, and a wide selection range, it can meet the needs of various occasions.
Connection form
Single input shaft - single (double output shaft); Double input shaft - single (double output shaft) .
The spatial positions of input and output axes vary widely .
Input and output shafts can be solid or hollow shafts .
The input shaft end can be flange and can be equipped with standard IEC motor .
Flexible installation position .
Application scope
DMHD series helical gear commutator is suitable for building materials, electric power, metallurgy, food, feed, textile, printing and dyeing, food, packaging, paper making, printing, chemical industry, forestry, tobacco, construction, electric machine, industry Robots and other mechanical products and devices, used in mining equipment, conveying equipment, reducer, energy saving equipment, wood, textile machinery, printing machinery, transportation and transportation fields, paper and environmental protection industry, automatic production lines and other industries.
Advantage
DMHD series bevel gear steering box, speed ratio 1:1, 2:1.
Long service life, input power and steering box weight ratio is large, box two mounting surface have threaded holes, flexible installation, convenient .
The average efficiency is 98%.
There are single axis, double horizontal axis, single vertical axis, double vertical axis optional.
Spiral teeth can be positive and negative operation, bending strength is higher than straight teeth, low speed or high .
speed transmission smooth, and low noise, small vibration, large bearing capacity .
