Overview

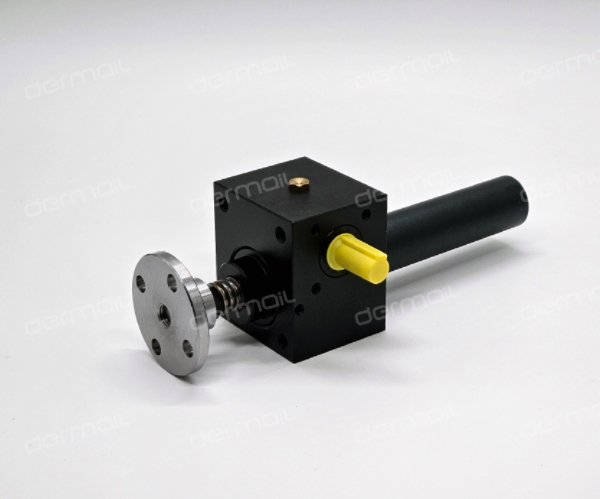

The DMT series screw jacks represent a pinnacle of engineering innovation in linear motion control, designed to meet the rigorous demands of industrial automation, heavy machinery, and precision positioning applications. Combining robust construction with advanced materials and cutting-edge design, these screw jacks deliver unparalleled reliability, efficiency, and adaptability across diverse sectors, including manufacturing, construction, automotive, and aerospace.
Key Features
1. High Load Capacity and Durability
- Heavy-Duty Design: Built to handle loads ranging from 1 ton to 200 tons (customizable for higher capacities), the DMT series features a reinforced housing and precision-machined components to withstand extreme stresses without deformation.
- Corrosion-Resistant Materials: The housing is crafted from high-grade alloy steel or aluminum alloy, with optional coatings (e.g., zinc plating, epoxy paint) for enhanced protection against harsh environments, including humidity, chemicals, and salt spray.
2. Precision Transmission Mechanism
- Trapezoidal Screw Option: For applications requiring self-locking functionality, the DMT series offers trapezoidal screw jacks. The high friction between the screw and nut ensures the load remains stationary even when power is cut, eliminating the need for additional braking systems.
- Ball Screw Option: For high-speed, low-friction applications, ball screw jacks are available, featuring recirculating ball bearings that reduce wear and improve efficiency. These are ideal for dynamic systems requiring frequent start-stop cycles.
3. Modular and Customizable Design
- Multiple Mounting Configurations: The DMT series supports vertical, horizontal, and inverted installations, with flange, trunnion, or clevis-end mounting options to suit diverse spatial constraints.
- Multi-Jack Synchronization: For large-scale lifting tasks, multiple DMT screw jacks can be synchronized using bevel gearboxes or servo motors, ensuring uniform load distribution and precise parallel motion.
- Custom Stroke Lengths: Stroke lengths can be tailored from 50 mm to 3,000 mm (or longer upon request), accommodating unique project requirements.
4. Energy Efficiency and Low Maintenance
- High Mechanical Efficiency: The precision-ground screw and nut reduce friction, minimizing power consumption and heat generation during operation.
- Long Service Life: The use of wear-resistant materials and lubrication-free designs (in some models) extends maintenance intervals, reducing downtime and operational costs.
5. Safety and Compliance
- Overload Protection: Optional limit switches or torque limiters prevent damage from excessive loads.
- Certifications: Compliant with international standards such as CE, ISO 9001, and ATEX (for explosive environments), ensuring global market accessibility.
Applications
The DMT series screw jacks excel in scenarios demanding precision, reliability, and heavy-duty performance:
- Industrial Automation: Conveyor systems, assembly lines, and robotic arms.
- Construction and Infrastructure: Bridge lifting, stage platforms, and solar panel tracking.
- Automotive: Vehicle testing rigs, assembly jigs, and paint booth positioning.
- Aerospace: Aircraft maintenance stands, wing adjustment systems, and satellite deployment mechanisms.
- Energy Sector: Wind turbine yaw and pitch control, nuclear reactor component handling.
Technical Specifications
| Parameter | Details |
|---|
| Load Capacity | 1–200 tons (customizable) |
| Stroke Length | 50–3,000 mm (extendable) |
| Screw Type | Trapezoidal (self-locking) or ball screw |
| Input Options | Motor (AC/DC/servo), hand crank, or bevel gear |
| Speed Range | 0.1–500 mm/min (dependent on configuration) |
| Operating Temperature | -30°C to +100°C (extended range available) |
| Protection Class | IP54 to IP67 (dust/water resistance) |
Why Choose DMT Series Screw Jacks?
- Global Support: Backed by a network of distributors and technical experts worldwide, ensuring prompt service and spare parts availability.
- Cost-Effective: Long lifespan and low maintenance reduce total ownership costs compared to hydraulic or pneumatic alternatives.
- Eco-Friendly: No hydraulic fluid leaks or air compression energy losses, aligning with sustainable manufacturing practices.
Conclusion
The DMT series screw jacks are engineered to deliver unmatched precision, strength, and adaptability for the most demanding industrial applications. Whether lifting massive loads or positioning delicate components, these screw jacks provide a reliable, efficient, and safe solution.
Contact us today to discuss your project requirements and explore how the DMT series can elevate your operations to new heights!
